Solar Combiner Box: How Does It Work


What Is a Solar Combiner Box?

A Solar Combiner Box is an important component in photovoltaic (PV) systems that combines the DC power generated by multiple solar panel strings into a single output circuit. It helps simplify system wiring while providing essential protection for downstream equipment, including the solar inverter.

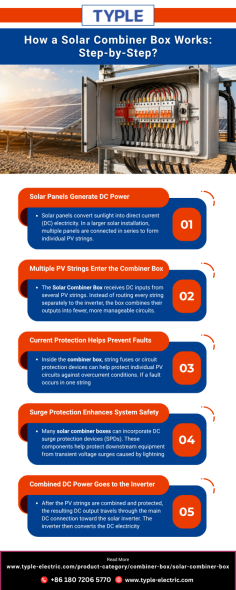

How Does a Solar Combiner Box Work?

During operation, electricity generated by different PV strings enters the Solar Combiner Box through individual input circuits. Inside the box, these inputs are combined and directed toward the inverter through a main DC output. Depending on the system design, the box may include string fuses, DC circuit breakers, surge protection devices (SPDs), and disconnect switches.

Also Read: https://www.typle-electric.com/product-knowledge/what-is-a-solar-combiner-box-and-how-does-it-work/

These protective components help reduce risks associated with overcurrent, short circuits, and transient voltage surges. A properly configured combiner box can also make system inspection, isolation, and maintenance more convenient.

Wenzhou Typle New Energy Technology Co., Ltd. provides Solar Combiner Box solutions designed for reliable photovoltaic applications. With organized internal components and appropriate electrical protection, a quality combiner box can contribute to safer operation, easier maintenance, and dependable long-term solar system performance. Choosing the right model according to system voltage, current, number of PV strings, and protection requirements is essential for optimal results.

To learn more about the Solar Combiner Box, click this link: https://tinyurl.com/337msda5, give us a call at +86 180 7206 5770, or send us an email at [email protected]
